  • ComradeTaoComradeTao Rock It! Joined: Posts: 1,245
    Understood.
    With God, all things are possible.

    The words "Hype", "Community", "Salty", and "Troll" have lost meaning due to overuse.
    ·
  • Icy Black DeepIcy Black Deep Still training... Joined: Posts: 998 ✭✭✭
    The chip is an Atmega32U4
    Can it handle 5 volts on the inputs instead of 3.3? From the data sheet it looks like that shouldn't be a problem, but if anyone can confirm it'll make me a little more confident planning out my mod.
    New Jersey
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Can it handle 5 volts on the inputs instead of 3.3? From the data sheet it looks like that shouldn't be a problem, but if anyone can confirm it'll make me a little more confident planning out my mod.

    The I/O are all 5v tolerant, you're solid.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • Icy Black DeepIcy Black Deep Still training... Joined: Posts: 998 ✭✭✭
    The I/O are all 5v tolerant, you're solid.
    Awesome. Thanks.
    New Jersey
    ·
  • antleexantleex Joined: Posts: 4
    Any tips for removing the ribbon cables for the SfxT fightstick pro? Been trying to remove them and install the cerberus in but I can only manage to get 2 off. I've never seen so much sticky gunk on it in my life.
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Any tips for removing the ribbon cables for the SfxT fightstick pro? Been trying to remove them and install the cerberus in but I can only manage to get 2 off. I've never seen so much sticky gunk on it in my life.

    Yeah that stuff can really be the hardest thing about a mod sometimes, lol.

    When it's too much to just pull the ribbon and break it, I use an exacto knife to cut in between where the header and connector kinda meet and then also use a really small flat head to help twist and pry the connector away from the header... at least enough to break the glue to a point that pulling it out works.

    The worst thing you can do is pull on the ribbon too hard and pull the wire out of it's crimp pin, so just be sure not to get too zealous with the ribbon cables.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • antleexantleex Joined: Posts: 4
    Ended up being busy the last few days but your tips ended up helping out. Was my first mod attempt but thought you made it easy enough and sure enough the hardest part about the mod was only getting the ribbons out.
    It works flawlessly.

    Thanks Phreakazoid. Keep up the good work.
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Ended up being busy the last few days but your tips ended up helping out. Was my first mod attempt but thought you made it easy enough and sure enough the hardest part about the mod was only getting the ribbons out.
    It works flawlessly.

    Thanks Phreakazoid. Keep up the good work.

    Awesome, I'm glad you're up and running and that it was as easy of an install as I make it out to be :)
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • FreedomGundamFreedomGundam Freedom, ikimasu! Joined: Posts: 1,507 ✭✭✭✭✭
    Hey Phreak, any ETA on when we might see analog support as a standard feature?
    Current stick: custom ABS Modular stick (LS-31-01 + PS-14-GN)
    Cabinet: custom cabinet (32" LCD, X360, JLF + PS-14-KN)
    Previous sticks: custom Happ CvS2 Double-sticks, custom Happ Hitomi-stick & Xenosaga-stick, custom Sanwa/Seimitsu Neptune-stick and Sylvia-stick, modded Mad Catz TvC, modded Mad Catz Brawlstick, modded Hori FSVX, modded Exar Exaprize

    Looking for:
    CPS2 (green or blue): Hyper SF2
    Naomi GD-ROM: SF Zero3 Upper, Puyo Puyo Fever, Triggerheart Excelica, Ikaruga
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Well Gummo has a firmware build that does analog right now, it may suit your need as is. Otherwise there's no ETA at this moment on getting it into the main build. Probably wouldn't be too difficult to add in, it's just a little low on the priority list at the moment.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • beedub321beedub321 "only posers die!!" Joined: Posts: 66
    so I used the stick I dual modded with this the other night with playstation allstars and the L2 and R2 buttons wouldn't work but they work fine on all my other ps3 games. is there a reason this is happening or a way go fix it?
    XBL= beedub321
    psn= beedub321
    ·
  • FreedomGundamFreedomGundam Freedom, ikimasu! Joined: Posts: 1,507 ✭✭✭✭✭
    Well Gummo has a firmware build that does analog right now, it may suit your need as is. Otherwise there's no ETA at this moment on getting it into the main build. Probably wouldn't be too difficult to add in, it's just a little low on the priority list at the moment.
    The question is... will Gummo share? :D j/k
    Thanks for the info, though, and I might poke at him for some info then.
    Current stick: custom ABS Modular stick (LS-31-01 + PS-14-GN)
    Cabinet: custom cabinet (32" LCD, X360, JLF + PS-14-KN)
    Previous sticks: custom Happ CvS2 Double-sticks, custom Happ Hitomi-stick & Xenosaga-stick, custom Sanwa/Seimitsu Neptune-stick and Sylvia-stick, modded Mad Catz TvC, modded Mad Catz Brawlstick, modded Hori FSVX, modded Exar Exaprize

    Looking for:
    CPS2 (green or blue): Hyper SF2
    Naomi GD-ROM: SF Zero3 Upper, Puyo Puyo Fever, Triggerheart Excelica, Ikaruga
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    so I used the stick I dual modded with this the other night with playstation allstars and the L2 and R2 buttons wouldn't work but they work fine on all my other ps3 games. is there a reason this is happening or a way go fix it?

    Looks like there's a bug with the game and how it reads those inputs from a few different controllers. Let me do some exploration on it to see if I can potentially give a "PSAS mode" or something, but my guess is that since this seems to be a common thing with quite a few different brands of sticks you'll see a fix in a game patch.. possibly this upcoming one.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • krlowzkrlowz Joined: Posts: 47
    I just got my TTT2 S+ stick and I installed the cerberus on it.
    Works perfect!! thanks a lot Phreakazoid for making such an awesome product.
    Ibuki sprite made by ReyArt http://is.gd/3CNB7
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    You're very welcome. Tell your friends!

    I should have a restock coming up here, just need to get a hold of the fab house to get an ETA.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • gahrlinggahrling Better safe than Hori.. Joined: Posts: 3,539 ✭✭✭✭
    Will you ever get some more unassembled boards in stock?
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Will you ever get some more unassembled boards in stock?

    Yes.. sort of. Currently FA still has a few left that you can get in this form though.

    The next run I've had the assembly house mount the top section of parts to make things easier on me with the assembled boards (the JST headers and such). The price for them won't change on your end, it's just not going to be completely unassembled this time.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • DarksakulDarksakul Your lack of faith disturbs me Joined: Posts: 11,674 ✭✭✭✭✭
    Before I go ahead and do this one mod for my future brother in-law, will the Cerberus work with Macs?
    You must defeat Sheng Long to stand a chance.
    there is a unwritten rule that every Full Moon some clueless poster has to stumble into this forum and tout their own perception as hard fact.
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Before I go ahead and do this one mod for my future brother in-law, will the Cerberus work with Macs?

    I actually don't know, I don't have a Mac to test against to confirm/deny, but 360 forced mode will likely work.



    Update:
    New boards are in, I spent some time this weekend putting some together for a restock at FA and my own site. Unfortunately I pulled a stupid and when I went to process the board files I used the wrong file to do so. Luckily the only thing that is botched is the bottom designators, the silk screen still remains, see below:

    This will only affect advanced users, since the top silk screen/labels are all picture perfect and have been improved upon since last build. The USB terminals are now labeled and there's 1-6 markers by the JST headers for reference also.

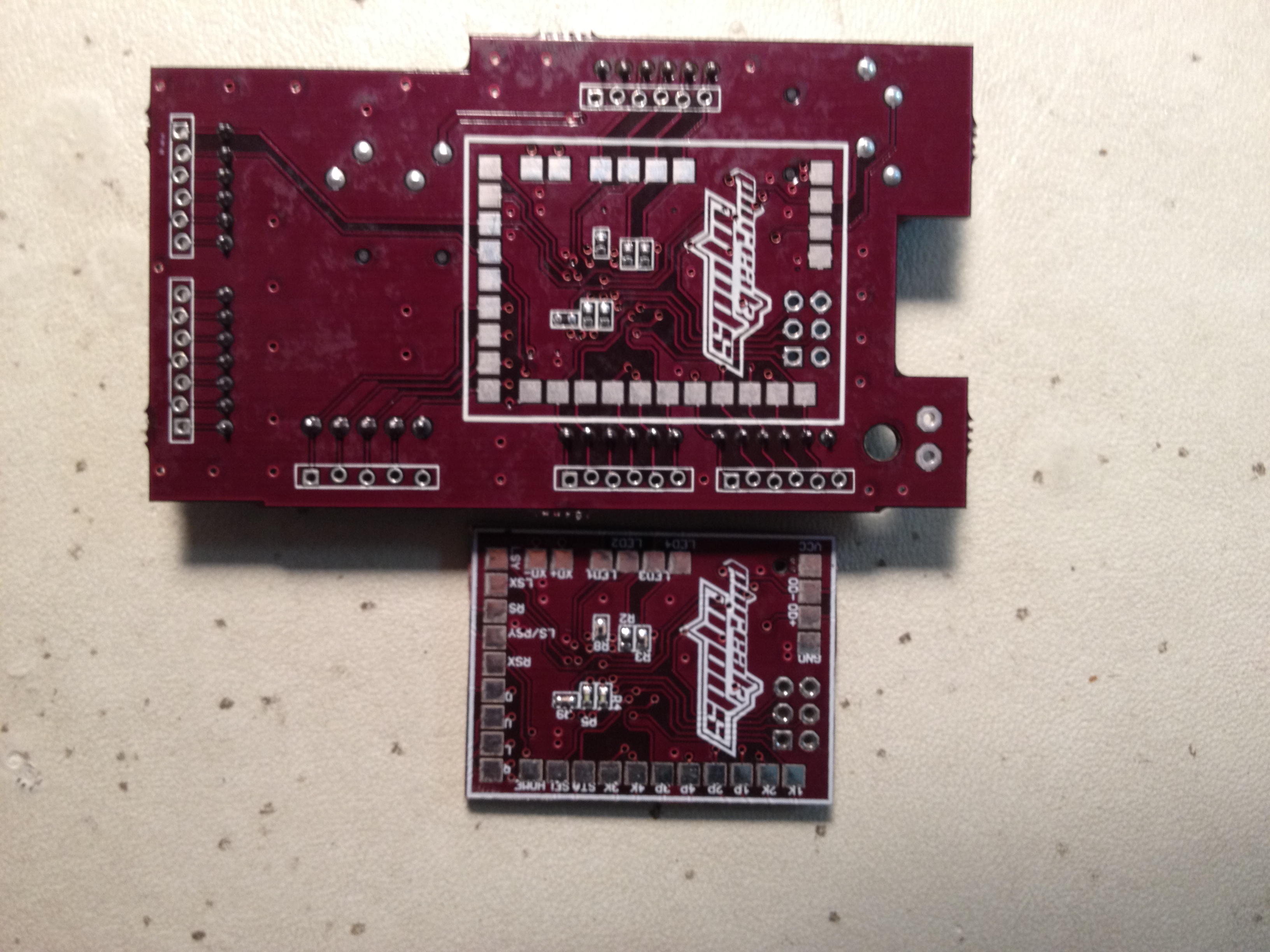

    The top shows the comparison between the previous build and new one. I will make a downloadable/printable image that has these designators for easy reference, they just won't be ON the board this time, sorry guys.

    The bottom just shows the updates, can't see the terminal labels but the logo is cleaner and the numbers are there. The top stuff that's shown is all assembled by the factory this time, making it a little easier on me to finish putting them together. When you get an advanced one, it will have that stuff on it... so cut it down to size or just use the terminals to your advantage. Advanced board (half assembled) still remains 30$.

    One possible extra use is a cheap fix for a 360 TE that has a busted PCB. Just remove it and swap it with the half assembled one, and voila you have a working stick again. With a little fiddling you can get this to work with round 1/2's for a fix also since it's no longer reliant on attaching to another PCB.



    Downloadable PDF of the bottom of the board for reference
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • PheNOM07PheNOM07 The King of Hearts Joined: Posts: 691
    So these are misprints? Maybe these will hold some value...like trading cards. lol
    "Straight Cash Homie!" - Randy Moss 84
    UMvC3: Zero, Vergil, Strider (Team Power Rangers)
    ·
  • mr.mortifiedmr.mortified e-sports and pew pew Joined: Posts: 3,018 ✭✭✭
    what do you do with a Cerberus without any of the connectors?

    Use it the exact same way!


    follow me on twitter @mr_mortified
    I need dat twitter PSR
    ·
  • DonkeyBlonkeyDonkeyBlonkey Part-Time Warrior/Soldier! Joined: Posts: 1,409 ✭✭
    I'm sure this has been asked before but... is the the solderless Cerberus still solderless when you're trying to connect the Remora Board's power to it?
    Bond: Vodka Martini.
    Bartender: Shaken or Stirred?
    Bond: Does it look like I give a damn?
    ·
  • mr.mortifiedmr.mortified e-sports and pew pew Joined: Posts: 3,018 ✭✭✭
    nope its not, there are solder points that you need to get. Either that or try cramming it in with the USB VCC and GND terminasl
    follow me on twitter @mr_mortified
    I need dat twitter PSR
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    I got mine in today and was looking for the instructions on the website but it's down. A youtube search only pulls up one video that's not in English. Does anyone have a reference video or can post the instructions again for me?
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • gahrlinggahrling Better safe than Hori.. Joined: Posts: 3,539 ✭✭✭✭
    I got mine in today and was looking for the instructions on the website but it's down. A youtube search only pulls up one video that's not in English. Does anyone have a reference video or can post the instructions again for me?


    Website is working fine.

    http://www.phreakmods.com/products/cerberus/cerberus-install
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    I'm using Google Chrome and I keep getting a "could not connect..." error message. Just tried another browser and I'm still having the same issue. Their site is the only one that I'm not able to connect to right now. Weird...
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • gahrlinggahrling Better safe than Hori.. Joined: Posts: 3,539 ✭✭✭✭
    I'm using Google Chrome and I keep getting a "could not connect..." error message. Just tried another browser and I'm still having the same issue. Their site is the only one that I'm not able to connect to right now. Weird...


    I'm using Chrome as well and it's still working fine.

    Try clearing your temp files and cache.
    ·
  • DarksakulDarksakul Your lack of faith disturbs me Joined: Posts: 11,674 ✭✭✭✭✭
    Before I go ahead and do this one mod for my future brother in-law, will the Cerberus work with Macs?
    I can confirm now with out a doubt that the Cerberus is mac compatible and it completely plug and play.
    You must defeat Sheng Long to stand a chance.
    there is a unwritten rule that every Full Moon some clueless poster has to stumble into this forum and tout their own perception as hard fact.
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    I'm using Google Chrome and I keep getting a "could not connect..." error message. Just tried another browser and I'm still having the same issue. Their site is the only one that I'm not able to connect to right now. Weird...

    Odd, let me know if you continue having this issue. I run firefox almost everywhere, try gahrling's suggestion first.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    I got my Cerberus in today and I'm having an issue so far. I plug up to a Win 7 64 bit laptop and it says "device not recognized". I plug up to xbox and similar to the pc, the leds light up for a split second then turn off and the controller is not responsive. Plug up to ps3 and the leds just keep flashing but I'm not able to do anything. Any ideas where I may have went wrong?
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • DarksakulDarksakul Your lack of faith disturbs me Joined: Posts: 11,674 ✭✭✭✭✭
    I got my Cerberus in today and I'm having an issue so far. I plug up to a Win 7 64 bit laptop and it says "device not recognized". I plug up to xbox and similar to the pc, the leds light up for a split second then turn off and the controller is not responsive. Plug up to ps3 and the leds just keep flashing but I'm not able to do anything. Any ideas where I may have went wrong?
    Check the USB connection. A common mistake is swapping the D- and D+ lines around.
    You must defeat Sheng Long to stand a chance.
    there is a unwritten rule that every Full Moon some clueless poster has to stumble into this forum and tout their own perception as hard fact.
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    Check the USB connection. A common mistake is swapping the D- and D+ lines around.
    Not sure if you mean make sure I have USB in and USB out in correct terminals but they are inserted correctly if that's the case.
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • gahrlinggahrling Better safe than Hori.. Joined: Posts: 3,539 ✭✭✭✭
    Not sure if you mean make sure I have USB in and USB out in correct terminals but they are inserted correctly if that's the case.


    He means to make sure that your white & green wires are in the correct terminals. But definitely double check everything.

    My Cerberus boards are not recognised on 64bit Win7 computers so I wouldn't worry about that too much for now, just focus on getting them working on consoles. If no joy then use a multimeter to make sure that the USB cables and terminals aren't damaged somewhere.
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    I don't have a multimeter at the moment to test this with. Considering the the usb plug is responsive once plugged in and holding start and plugging the usb plug in lights up all 4 led indicators, do you think I've maybe gotten a short in the plug going from the pcb to the Cerberus possibly?
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    I don't have a multimeter at the moment to test this with. Considering the the usb plug is responsive once plugged in and holding start and plugging the usb plug in lights up all 4 led indicators, do you think I've maybe gotten a short in the plug going from the pcb to the Cerberus possibly?

    Ok, just a few verifications here.

    1. Plugging into the PC with START held down cycles the LEDs clockwise and you can hear the USB connection sound?
    2.
    I plug up to xbox and similar to the pc, the leds light up for a split second then turn off and the controller is not responsive. Plug up to ps3 and the leds just keep flashing but I'm not able to do anything. Any ideas where I may have went wrong?

    Plugging into your PS3 all 4 LEDs flash at the same time briefly?

    It sounds to me like you have one or multiple issues going on so we'll just have to narrow some things down.

    1. Check and recheck your USB cables into the IDC terminals, make sure they are ALL the way INTO the terminals and the terminals are ALL the way down.
    2. Check your 1-6 cables, in particular cables 4 and 5, are they swapped on accident?

    One thing you can do is unplug the board's from each other and remove the 360 PCB's USB connection so that only the Cerberus is actually connected to anything, then verify it works on your PC/PS3 before moving forward.

    Pics of course help also if you can.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    Ok, just a few verifications here.

    1. Plugging into the PC with START held down cycles the LEDs clockwise and you can hear the USB connection sound?
    2.


    Plugging into your PS3 all 4 LEDs flash at the same time briefly?

    It sounds to me like you have one or multiple issues going on so we'll just have to narrow some things down.

    1. Check and recheck your USB cables into the IDC terminals, make sure they are ALL the way INTO the terminals and the terminals are ALL the way down.
    2. Check your 1-6 cables, in particular cables 4 and 5, are they swapped on accident?

    One thing you can do is unplug the board's from each other and remove the 360 PCB's USB connection so that only the Cerberus is actually connected to anything, then verify it works on your PC/PS3 before moving forward.

    Pics of course help also if you can.
    When I had the Cerberus only hooked up it still doesn't work with ps3 or pc. Pc still gives error message but when I hold start down all leds rotate clockwise. Checked 1-6 cables and they are all inserted in the right terminals. When hooked up to the 360 PCB i still get the same issues where it lights up for a split second and then is no longer responsive on 360 and when plugged to ps3 all 4 leds just flicker on and off. Here are a few pics of everything.

    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • gahrlinggahrling Better safe than Hori.. Joined: Posts: 3,539 ✭✭✭✭
    When I had the Cerberus only hooked up it still doesn't work with ps3 or pc. Pc still gives error message but when I hold start down all leds rotate clockwise. Checked 1-6 cables and they are all inserted in the right terminals. When hooked up to the 360 PCB i still get the same issues where it lights up for a split second and then is no longer responsive on 360 and when plugged to ps3 all 4 leds just flicker on and off. Here are a few pics of everything.


    What model of 360 stick are you putting it into?
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    Re-do your USB cables, it looks like the white wire (D-) may not be in all the way. The LEDs cycling indicates to me that the board has power and the code is running, but the data lines aren't reaching their destination.
    Unhook the IDC terminals all the way back, remove all 4 wires, cut/start fresh and push them ALL the way back until you can see them in the windows. Then press down hard to make sure that the terminals are closed all the way.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • PhreakazoidPhreakazoid Turkey Legs Incoming! Joined: Posts: 3,326 ✭✭✭✭
    What model of 360 stick are you putting it into?
    Methinks a BB stick.
    Cerberus, easy dual mod for your TE ->www.phreakmods.com/products/cerberus
    Link JLF Detachable Joystick Shaft! -> www.PhreakMods.com/products/the-link
    Available @ FocusAttack.com -> http://www.focusattack.com/jlf-link/
    Available @ JasensCustoms.com -> https://www.jasenscustoms.com/PhreakMods-The-Link.html
    Available @ ParadiseAracadeShop.com -> http://www.paradisearcadeshop.com/fgc-featured/1124-the-link-jlf.html
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    Thanks for the help. I'll check it out tonight or tomorrow and see if that fixes the issue. It's an MLG TE that I'm trying to put it in.
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    I finally got it working now but there is one small problem. PS3 works fine and Xbox also works with the exception of left and right directions. Everything else works. I thought it might have been the sanwa mircoswitch set so I swapped it out and it's still the same thing. Any idea what would cause that?
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • DarksakulDarksakul Your lack of faith disturbs me Joined: Posts: 11,674 ✭✭✭✭✭
    I finally got it working now but there is one small problem. PS3 works fine and Xbox also works with the exception of left and right directions. Everything else works. I thought it might have been the sanwa mircoswitch set so I swapped it out and it's still the same thing. Any idea what would cause that?
    The joystick harness somewhere isn't seated correctly. The default cable is easy to install backwards on the JLF end of the cable.
    I recommend the Toodles JLF-TE joystick wire harness
    You must defeat Sheng Long to stand a chance.
    there is a unwritten rule that every Full Moon some clueless poster has to stumble into this forum and tout their own perception as hard fact.
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    The joystick harness somewhere isn't seated correctly. The default cable is easy to install backwards on the JLF end of the cable.
    I recommend the Toodles JLF-TE joystick wire harness
    But it works fine when plugged up to PS3/PC. All directions function properly. It's only when 360 is plugged in that it doesn't work right.

    EDIT: Nevermind got it fixed..
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • FreeswayFreesway Yuuuuup Joined: Posts: 334
    Also, this may be a wiring issue on my part. Sometimes when plugged up to 360 it works fine on the first time. Other times I have to plug it up several times for it to recognize. Like I said, it may be I don't have one of the wires all the way in the terminal right.
    "On my own dick like I'm layin' on my stomach"

    http://www.last.fm/user/freeway4885
    ·
  • Helen KellerHelen Keller Joined: Posts: 47
    Installed into an HRAP VX-SA Kai.. Sorry if this images is too large, it has been resized to 40% its original size but still looks really big IMO.
    Spoiler:
    ·
  • Helen KellerHelen Keller Joined: Posts: 47
    O I've wired something improperly, haven't I?
    ·
  • mr.mortifiedmr.mortified e-sports and pew pew Joined: Posts: 3,018 ✭✭✭
    yeah, you don't have any access to XBOX since XD+ and XD- are not highlighted and if you haven't cut the traces off the USB, you're mixing Xbox and Cerberus Data Lines together
    follow me on twitter @mr_mortified
    I need dat twitter PSR
    ·
  • Helen KellerHelen Keller Joined: Posts: 47
    So I need to cut my USB cable and wire that to VCC, OD-, OD+, and GND. Then from the HORI PCB to XD+ and XD-? What about GND and VCC from the the HORI board.

    I tried to use your post here on page 3 as a guide but we are using two different 360 boards so I still had some complications. Perhaps I am mistaken, but it appears that you did not cut your USB cable. Because of this assumption I figured I would not have to the same for mine.
    ·
  • mr.mortifiedmr.mortified e-sports and pew pew Joined: Posts: 3,018 ✭✭✭
    there's something very specific that is hidden underneath that one. On MCZ boards, there are 0 ohm resistors on the D+ and D- data lines. Those are removed, isolating the signal from D+ and D- of the xbox board and the USB cable from one another. The XD+ and XD- are connected to one side of those points to tap the xbox signal and the other half is the D+ and D- of the Cerberus board. Hope that was clear and helps
    follow me on twitter @mr_mortified
    I need dat twitter PSR
    ·
  • Helen KellerHelen Keller Joined: Posts: 47
    OK I think I see what I need to do. XD+ and XD- to 360 PCB and OD+ and OD- to us cable. VCC and GND are going to be shared by both boards so it does not matter which of the two boards I solder those two lines to? I guess it will probably be easier to wire those to the Cerberus board since those two points are right next to USB out.

    Thanks mortified, had no idea the MCZ boards were wired in such a way.
    ·
13468914
Sign In or Register to comment.
